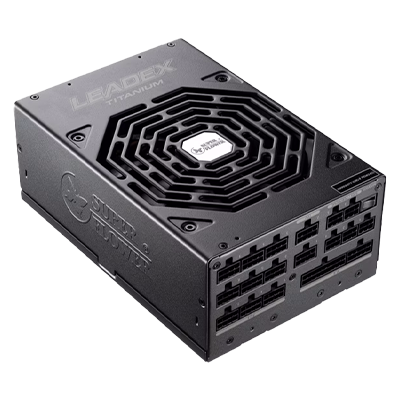

Super Flower Leadex Titanium 1600W 80 Plus Titanium Fully Modular Power Supply - Perfect for Gaming PCs, Workstations, and High-End Builds
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:28 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:47096957
Product Description
SF-1600F14HT ATX3.1
LEADEX Titanium 1600W ATX3.1 are 80+ Titanium certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
100% Full Modular Cabling Design For Easy Cable Management
80 PLUS® Titanium Certified, 90% 92% 94% 90% Efficiency At 10% 20% 50% 100% Rated Load
Full Range Auto Voltage Detection Design 115V~240V (Active PFC)
Comply With ATX 12V v3.1, EPS 12V v2.92 Specification.
Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
More than 2,000 times On/Off test
Unleaded Green Materials with RoHS/WEEE Compliance
Perfect For Professional & High Performance Gaming System
Exclusive Patents
(Taiwan & China Patents Approved, USA, Germany & Japan Patents Pending)
1. ECO Intelligent Thermal Control System
2. Multi Patenet Pending Extreme High Efficiency Main Transformer
This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:
- Industrial grade server system.
- Special ultra-high load operation system (for example: bitcoin mining machine... etc.)
- Test equipment system (for example: memory RAM, VGA graphic card or USB device test)
Model No. | SF-1600F14HT | |
Wattage | 1600W | |
80+ Efficiency | 10%: 90%; 20%: 92% ; 50% : 94% ; 100% : 90% (115V Internal Titanium) | |
Intel Power Design Guide | EPS Ver. 2.92 & ATX 3.1 | |
AC Input / Frequency | 100-240V | 60 / 50Hz | |
Fan Size | 140mm Two-Ball Bearing Fan | |
Dimension | 220mm(L) x | |
Protection | OVP/ OCP/ OPP/ SCP/ UVP/ OTP/ NLO/ SIP | |
Safety | cTÜVus / TÜV / CB / CE / FCC / RCM / RoHS / KCC / CQC | |
Temprature | Passed 50℃ Hot Testing | |
Cable Spec | ||
20+4Pin | Detachable Cables | One cable (600mm) |
8 (4+4) Pin CPU | Two cables (750mm) | |
PCI-E 6+2Pin | Four cables (750mm) | |
SLI (2 x PCI 6+2Pin) | Five cables (750+150mm) | |
4SATA | Three cables (550+100+100+1000mm) | |
2SATA+2Molex | One cable (550+100+100+100mm) | |
3Molex | One cable (550+100+100mm) | |
Molex to FDD Adapter | Two cables (100mm) | |
PCIe 16 Pin | Two Cables (700mm) | |
